Capacitor Given Voltage

A capacitor may have a 50 volt rating but it will not charge up to 50 volts unless it is fed 50 volts from a dc power source. The voltage rating is only the maximum voltage that a capacitor should be exposed to not the voltage that the capacitor will charge up to.

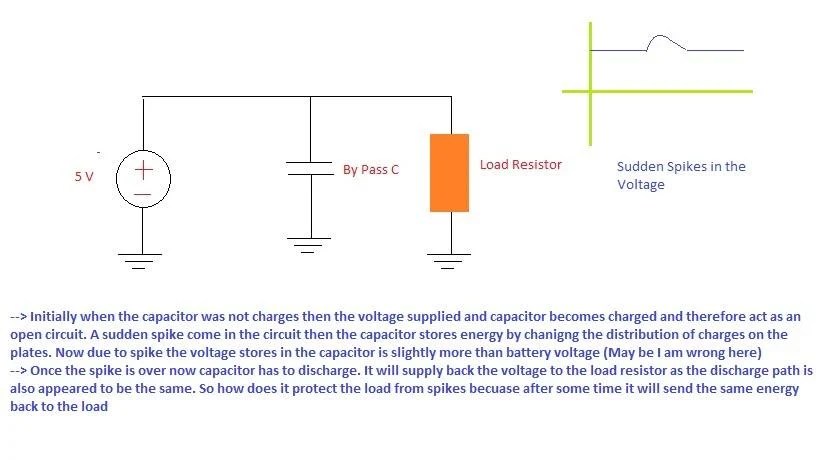

How Does A Capacitor Protect Against Voltage Spikes

High Voltage Capacitors And Power Resistors Johanson

Capacitors In Series And Series Capacitor Circuits

Capacitor charge energy calculation examples.

Capacitor given voltage. Then a capacitor which is required to operate at 100 volts ac should have a working voltage of at least 200 volts. The result should be about 0777. To see how the current and voltage of a capacitor are related you need to take the derivative of the capacitance equation q t cv t.

The relationship between a capacitors voltage and current define its capacitance and its power. The voltage across the 100uf capacitor is zero at this point and a charging current i begins to flow charging up the capacitor until the voltage across the plates is equal to the 12v supply voltage. For example in the calculator defaults a 1 farad capacitor charging through a 1 ohm resistor and 1 volt battery will reach about 777 millivolts in 15 seconds.

The voltage and current of a capacitor are related. The time constant of a resistor capacitor series combination is defined as the time it takes for the capacitor to deplete 368 for a discharging circuit of its charge or the time it takes to reach 632 for a charging circuit of its maximum charge capacity given that it has no initial charge. A capacitors energy or work can also be calculated if its capacitance c and voltage v are known using the equation.

In practice a capacitor should be selected so that its working voltage either dc or ac should be at least 50 percent greater than the highest effective voltage to be applied to it. From left to right the entries would be 1001 1000000 1500 with the instantaneous voltage field left blank or zero. Where e is the energy sometimes written as w for work.

A capacitor on a computer motherboard is known to have capacitance of 5 farads and the voltage is known to be 50 mv. What is the capacitors charge in farads. Then vc vs 12v.

The charging current stops flowing and the capacitor is said to be fully charged.
